Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-Water tank
Contact Us
Softened Water Pressure Vessels RO System Accessories
Specifications
| Specification | Size | Capacity | Opening | Length from top to bottom | Length | O.D. | Base Form | ||
| (Inch) | (mm) | (L) | Top open | (mm) | (mm) | (mm) | |||
| 817 | Φ 205× 445 | 11.3 | 2.5''NPSM | 446 | 432 | 206 | pp | ||
| 835 | Φ 205× 905 | 24.0 | 2.5''NPSM | 905 | 891 | 206 | pp | ||
| 844 | Φ 205× 1130 | 32.5 | 2.5''NPSM | 1131 | 1117 | 206 | pp | ||
| 1017 | Φ 255× 445 | 17.8 | 2.5''NPSM | 447 | 433 | 257 | pp | ||
| 1035 | Φ 255× 905 | 38.6 | 2.5''NPSM | 903 | 889 | 257 | pp | ||
| 1054 | Φ 255× 1390 | 61.9 | 2.5''NPSM | 1390 | 1376 | 257 | pp |
||
Product Description
We have over 80 different sizes of pressure tanks from diameter 6 to 83 inch. All the products are made and tested according to the international standard which have passed NSF and CE certification. We manufacture ont only for our brand, but also offer OEM service for our customers.
1. Working Pressure: 0.1~0.6 MPa
2. TDS: ≤700mg/L
3. Production Capacity: 1~35m3/h
4. Raw water temperature: 1~40 degree
5. Operating temperature: 1~50 degree
6. Inlet water hardness: ≤12mmol/L
7. Outlet water hardness: ≤0.03mmol/L
8. regenerating resin should use NaCl, couldn't use iodised salt, calcium salt

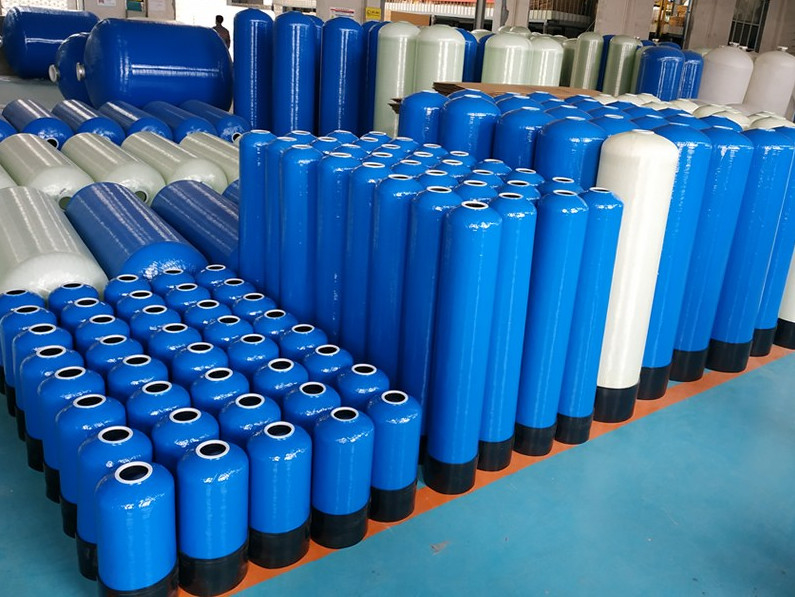

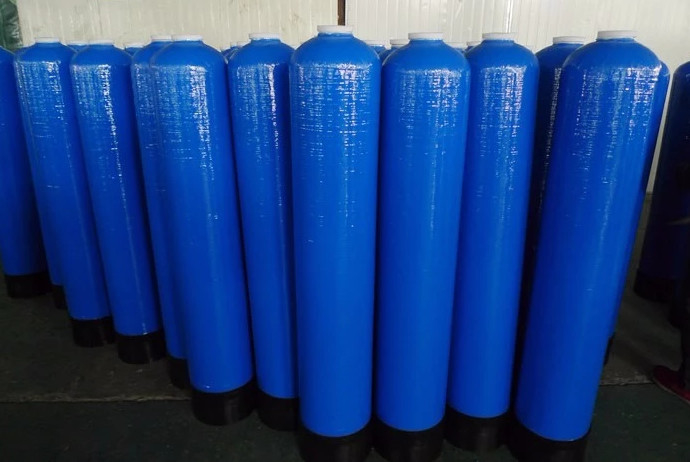

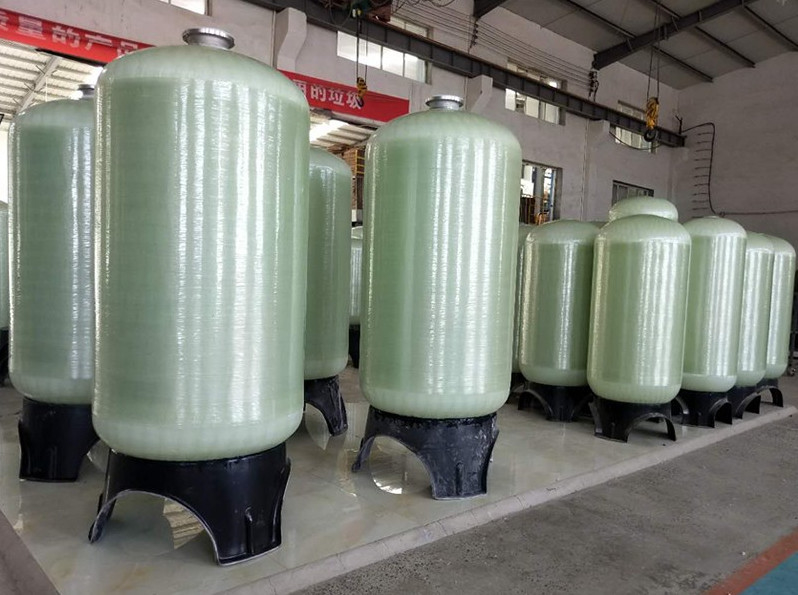

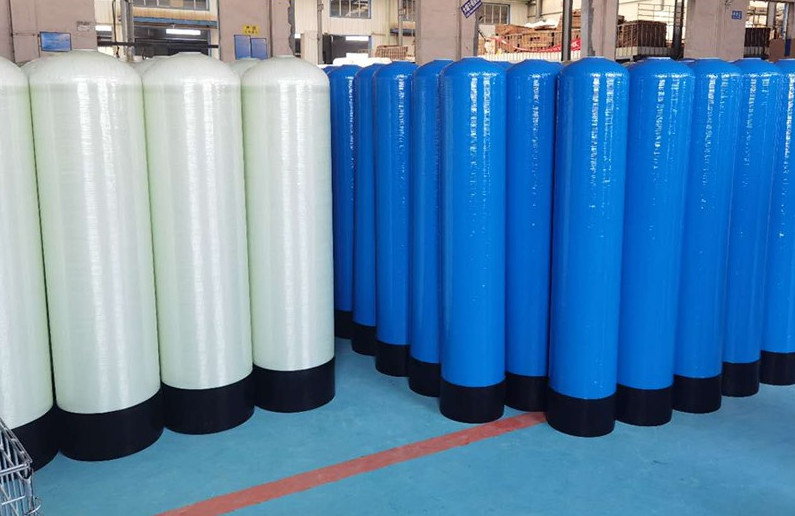

817&1054&1665 frp pressure vessels water tank in water treatment
Frp pressure tanks are with PE liner,broadly applying to residential , commercial and industrial softening and filtering systems,With perfect performance of corrosion resistant,the vessels can be sufficiently equipped with mechanical control valves and meet requirements of clients
