Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-UF
Contact Us

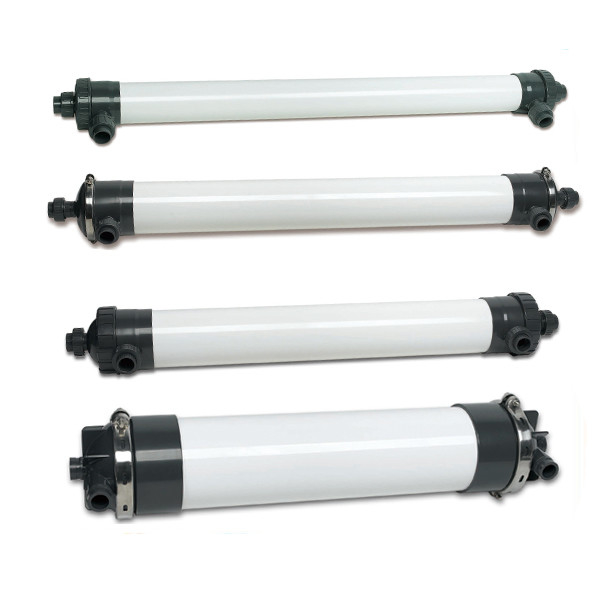

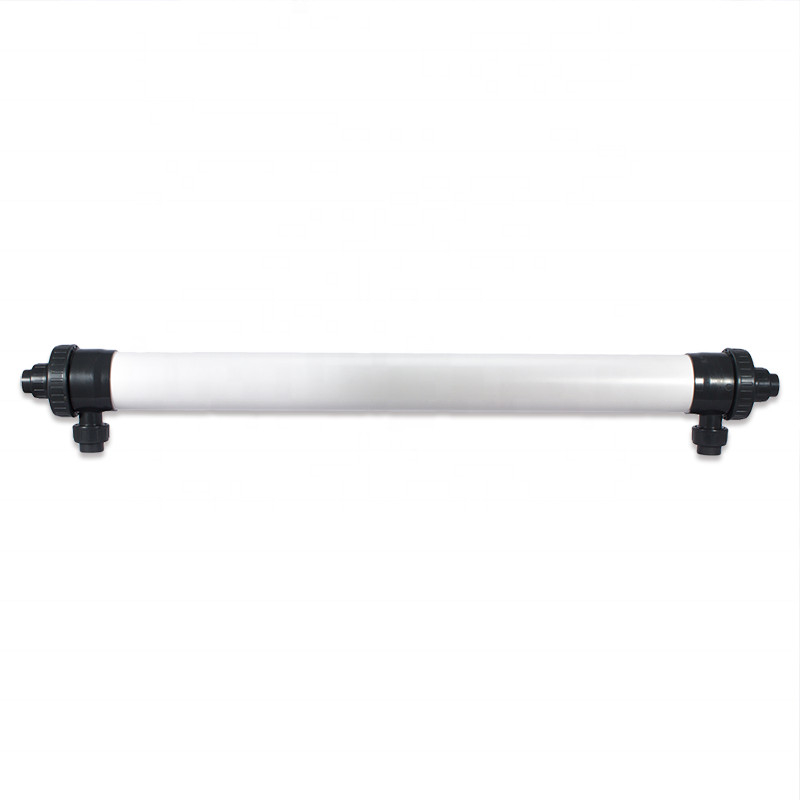

Ultra-Filtration Membrane By Reinforced Hollow Fiber Membrane
Specifications
| Module | UF-4021 | UF-4040 | UF-8040 |
| Size (mm) | Ø101×533.4 | Ø101×1016 | Ø201.9×1016 |
| Module type | Inside-out | Inside-out | Inside-out |
| Shell and seal materials | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins |
| Membrane Material | PAN | PAN | PAN |
| Max operating pressure psi(Mpa) | 43(0.3) | 43(0.3) | 43(0.3) |
| Suggest operating pressure psi(Mpa) | <15(0.1) | <15(0.1) | <15(0.1) |
| Max trans-membrane pressure psi(Mpa) | 29(0.2) | 29(0.2) | 29(0.2) |
| Operating temperature | 5~40℃ | 5~40℃ | 5~40℃ |
| Effective membrane area | 4m2 | 2m2 | 18m2 |
| Design flux | 40-150L/m2/h | 40-150L/m2/h | 40-150L/m2/h |
| Molecular Weight Cut off(Dalton) | 50,000 | 50,000 | 100,000 |
| Hollow fiber id/od size | 1.0mm/1.6mm | 1.0mm/1.6mm | 1.0mm/1.6mm |
| Hollow fiber quantity | 1400 | 1400 | 7300 |
| PH range | 3~9 | 3~9 | 3~9 |
| Initial flux | 0.8m3/h | 0.8m3/h | 4m3/h |
| Feed water turbidity NTU | <70 | <70 | <70 |
| Produced water turbidity NTU | <1 | <1 | <1 |
| Feed water turbidity residual chlorine ppm | <70 | <70 | <70 |
| Feed water pollution index( SDI 25) | <25 | <25 | <25 |
Application
• Pre-filtration for RO system
• Solvents, selected acids & lyes, chemical industry.
• Semiconductor, Electronic industry ultrapure water system
• Food and beverage
• Oil and Gas industry.
• Pharmaceutics
• Paints, coatings and plating solutions
Advantages of Our MBR Modules:
All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.
Permanent Hydrobility Membrane
Strong strength, the broken strength more than 50MPa
Excellent performance and Low cost
UF membrane application
1. Industrial waste water treatment and reuse;
2. Pretreatment of RO&NF.
3. Drinking water treatment of tap water, surface water, well water and river water;
4. food and beverage processing;
5. sea water desalination engineering.
