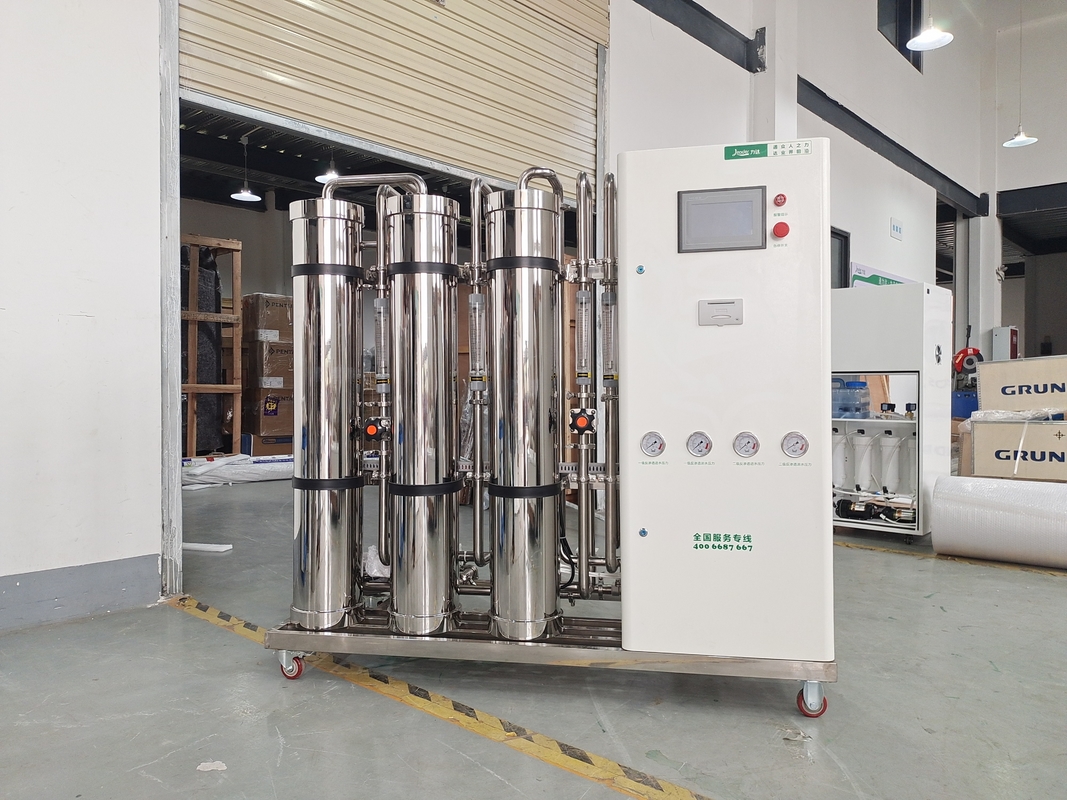

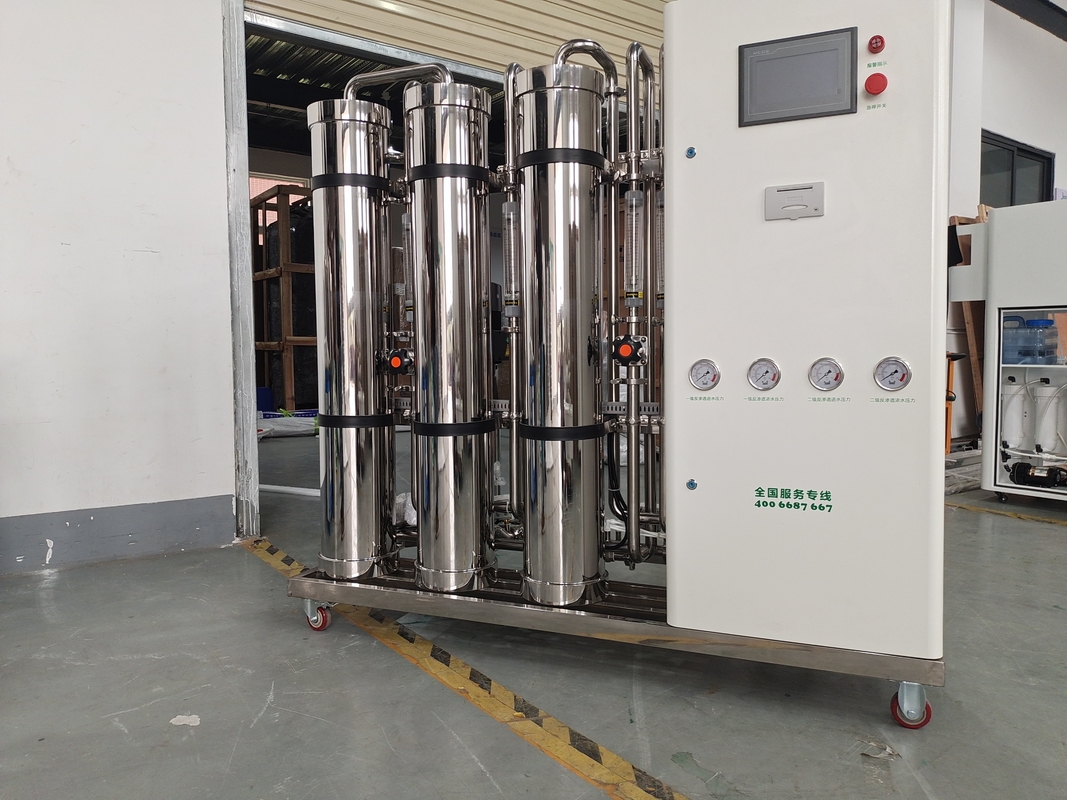

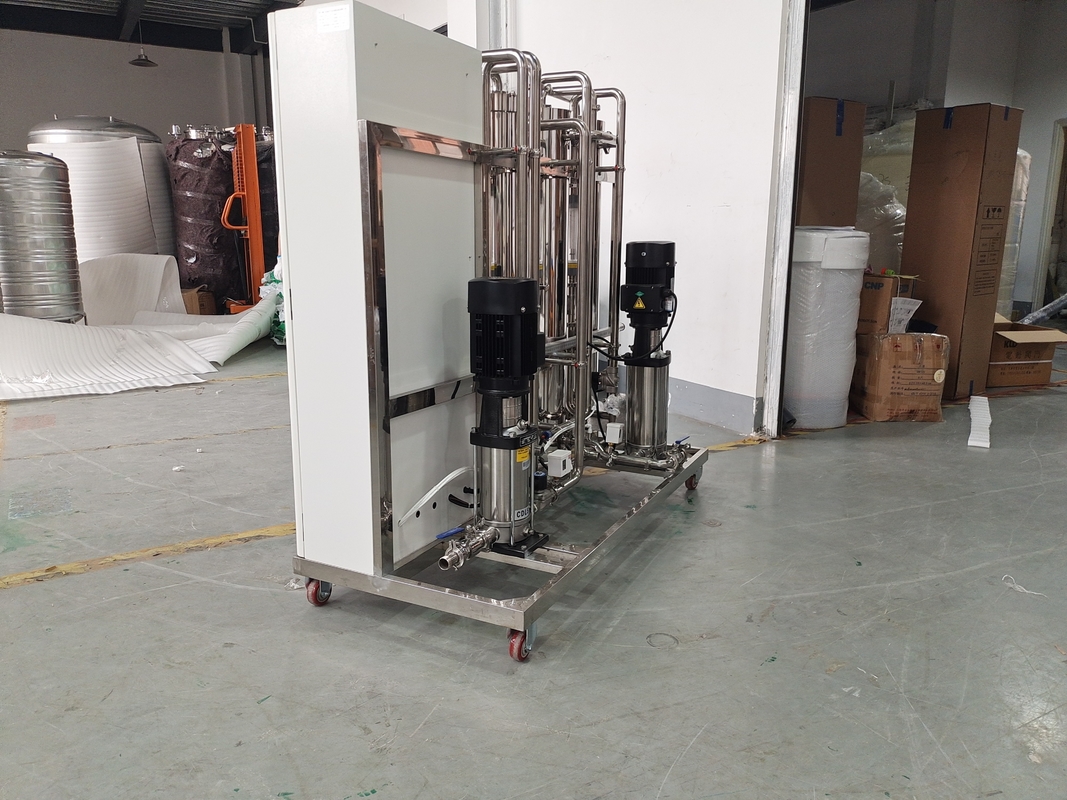

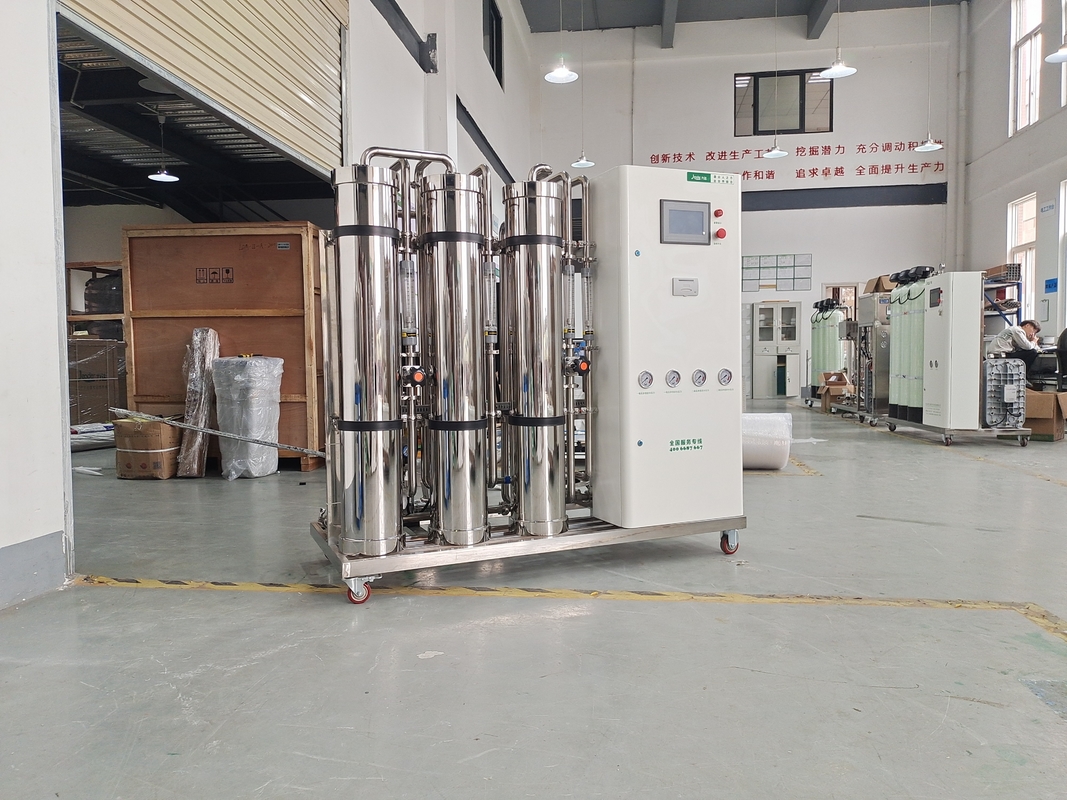

1000LPH Double stage RO system by complete SS Material with UV disinfection
A. Description:
Reverse osmosis, the raw water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².
B. Process:
Raw water+ Raw water tank +Raw water pump+Multi- media filter+ Activitated carbon Filter + Soften filter + salt box +cartridge filter + One-stage high-pressure pump + One-stage reverse osmosis system+ One-stage pure water tank + Two-stage high-pressure pump + Two-stage reverse osmosis system + Two-stage pure water tank + Delivery pump + Water point
C. Parameters:
1. Capacity: customized
2. Rated power: check with the configuration list
3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country
4. Desalting rate:97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤400μs or custom designed
7. Conductivity of pure water: ≤10μs or custom designed
