Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-RO-500LPH
Contact Us

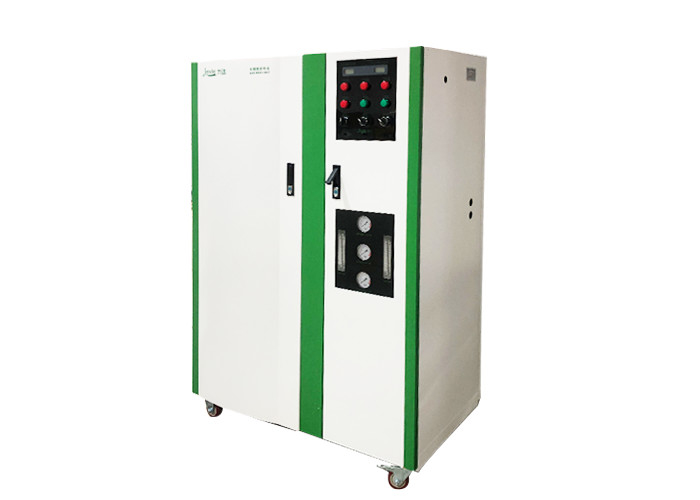

500LPH Disinfection Center Cabinet Single Pass Reverse Osmosis System
This cabinet single pass reverse osmosis system could be used in the disinfection center of hospital, adopts cabinet design, integrated pretreatment, RO function in a cabinet, only take up a small area and it's with beautiful apperanace.Anyway, it's easy to move;
Reverse osmosis (RO) is a water purification process system. It uses partial osmosis membrane to separate ions, unwanted molecules and large particles from drinking water.
Specification
| Model | LDM-III-A-300 | LDM-III-A-500 | LDM-III-A-1000 |
| productivity | 300L/H | 500L/H | 1000L/H |
| produced water conductivity |
≤15us/cm |
≤15us/cm |
≤15us/cm |
| Power | 2.0KW | 2.0KW | 2.5KW |
| Applicable original water pressure | 0.1-0.5mpa | 0.1-0.5mpa | 0.1-0.5mpa |
| Supply water pressure | 0.2-0.3mpa | 0.2-0.3mpa | 0.2-0.3m |
Working process :
Features:
1. The desalination rate is during 98%-99%;
2. The recovery of water is 75%;
3. PLC control automatic flushing function.
4. Low operating cost and long life span.
5.The system has a compact structure, a small footprint, and effectively saves space
Pictures
Pressure gauge
LCD
warehouse
package
