Reverse Osmosis System Water Plant Purification Water Equipment

Reverse Osmosis System Water Plant Purification Water Equipment

Reverse Osmosis System:

Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultrapure drinking water production, power stations, electronic industries,and medical treatment. It is capable of removing 99% of total dissolved solids (TDS), 99% of organic, including pyrogens,and 99% of all bacteria in the feed water.

Process:

raw water+ raw water tank+ raw water pump+ sand filter+ carbon filter+ resin filter + security filter + high pressure pump+ reverse osmosis system+ water supply points

1.Booster pump– provide the pressure to quartz sand filter/active carbon filter

2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.

3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.

4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.

5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um

6.High pressure pump– Provide the high pressure to RO membrane

7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

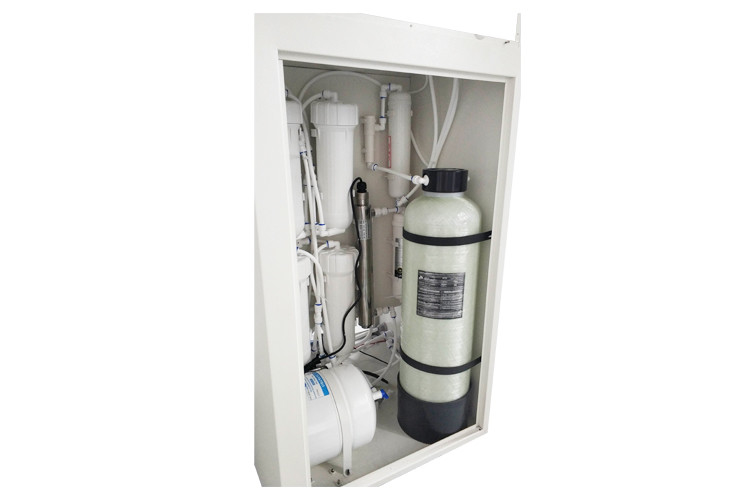

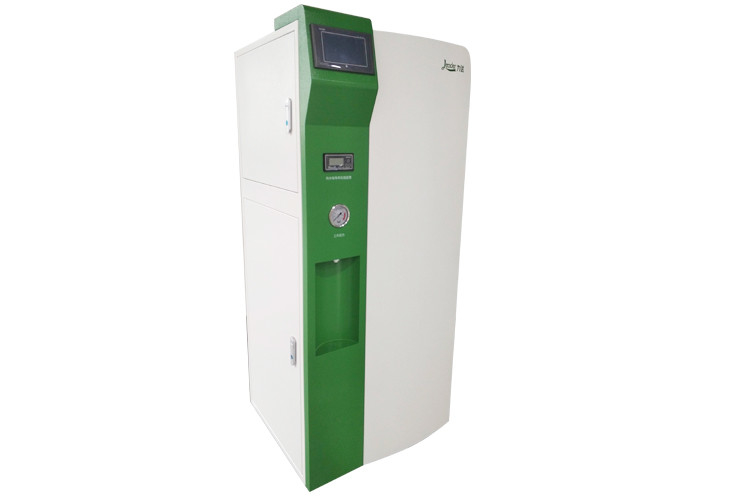

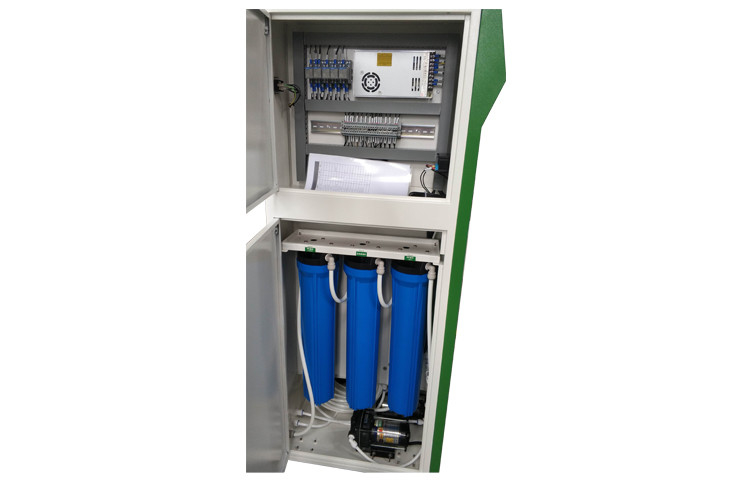

Picturers:

Factory Pictures:
