Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-EDI-5000L
Contact Us

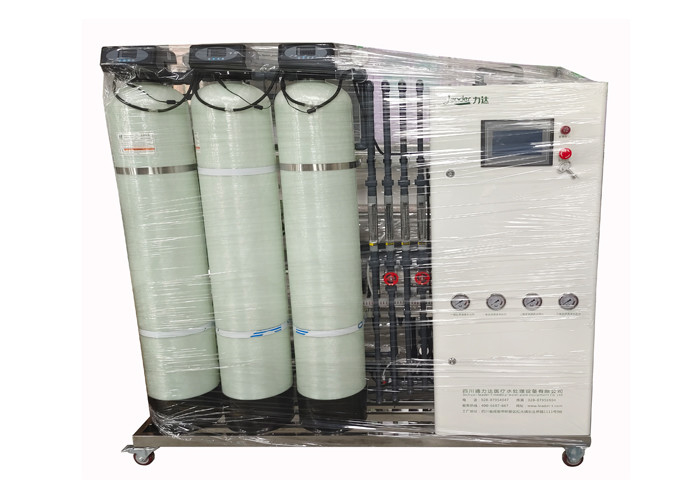

300L Per Hour Reverse Osmosis EDI Water Treatment Plant For Laboratory
Reverse Osmosis Ro System Water Features
High precision filter, aperture is nanometer level, water quality best manual/electric control system automatic switch; With self-checking function, no water point automatic boiling water system, water full stop, no pressure protection and other safety devices; Open RO film automatic cleaning and water tank automatic double cleaning, can prolong the service life of RO film; With water quality online monitoring (conductivity display), flow, pressure online display function; Integrated equipment, simple installation, simple operation, no special person responsible; Equipment failure with automatic alarm function;
High water yield, high desalination rate, long service life;
Core components (pump, reverse osmosis membrane, electric control system, etc.) imported/domestic joint venture brand; The equipment frame is made of stainless steel, the low-pressure tube is UPVC, and the high-pressure tube is SUS304 stainless steel.
Specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | Domestic PUROLITE,Rohm Hass | |||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. |
|||
What is ro plant?
RO device is the raw water by precision filter, particle active sand filter, activated carbon filter, compression, and then through the pump pressure, using the reverse osmosis (RO) membrane pore size 1/10000 microns to make relatively high concentrations of water into the low concentration of water, at the same time, a large number of mixed with industrial pollutants, heavy metals in water sufficient isolation, impurities such as bacteria, viruses, Reach the physical and chemical indexes required by drinking and hygiene standards, output with clean pure water as the best choice of body supplement water quality. It is the key equipment of pure water plant.
What is EDI?
Electrodialysis technology and ion exchange technology, through the cation, anion membrane on the choice of positive and negative ions through the role of ion exchange resin on the exchange of ions in the water under the action of the electric field to achieve the migration of ions in the water, which can achieve a deep water purification desalination, and through the water electrolysis of hydrogen ions and hydroxide ions on the packaging resin for continuous regeneration.
Flow chart
